Medical equipment

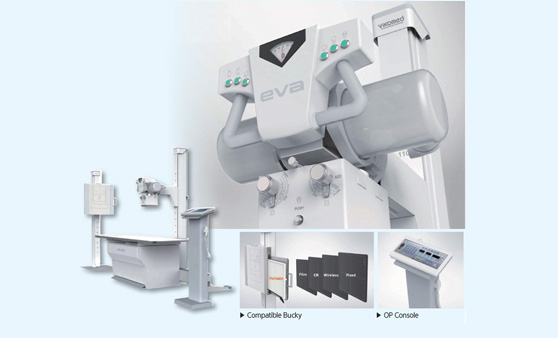

EVA HF Plus series

Features

  • Stable
  • Save installation space
  • System specification provides many options HGF (40kW-500mA, 50kW-700mA)
  • Easy to upgrade from conventional radiology to digital via installation of mobile detector.

Specification

Specification
Component EVA HF 525 Plus EVA HF 750 Plus
Xray Tube Toshiba Tube E7239X E7252X
Focal spot 1.0 / 2.0 0.6 / 1.2
Operating voltage 40-125kV 40-150kV
Anode Heat Storage 140.000 HU 300.000 HU
Generator Max kV 40-125 kV 40-150 kV
Max mA 500mA 700mA
Output 40kW 50kW
Input 1 phase 220VAC 3 phase 380VAC
Option 3 Field - AEC, PSU

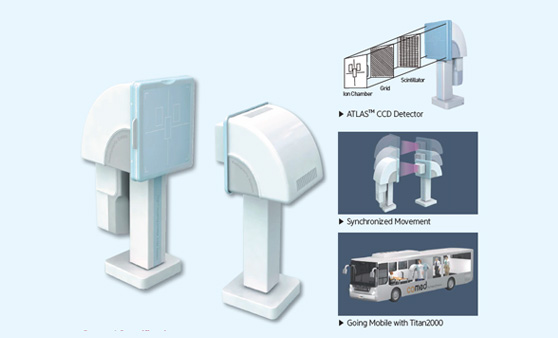

Titan 2000 Chest
CCD Digital Radiography System

General Specification

General Specification
CCD Camera Detector Type 4M(2K×2K), 6M(2K×3K), 9M(3K×3K), 16M(4K×4K)
Generator 700mA, 850mA
Image processing and storage Patient information, System calibration, Noise reduction, Digital Zoom, Image database, DICOM 3.0, CD-ROM storage
Monitor 23” TFT LCD monitor

Full Frame CCD Detector

Full Frame CCD Detector
Detector Array Full Frame CCD
Detector 3K 4K
Total Number of Pixels 3095x3076 4145x4125
Active Image Size 17” x 17” 17” x 17”
Image Acquisition Time 2.5 sec 5 sec
Image Process Time 5 sec 7 sec
Integration Period Programmable
Spatial Resolution 3.6lp/mm 4.6lp/mm
Dynamic Range 84Db 76dB
